Technical Specifications
Features
- 3 layers | Polystyrene
- Thickness: 2"
- Exterior face: light woodgrain finish | Interior face: stucco finish
- Door interior: regardless of the colour chosen, the inside is always White (door, window frames and inserts).
Sizes
- Widths from 8' to 20', in 1" increments
- Heights from 6'6" to 8', in 3" increments
Please contact us for more details on other available sizes.
8’ high door layouts
The 8’ high doors are built with 5 sections, except for Moderno SSG design (4 sections).
Layouts
|

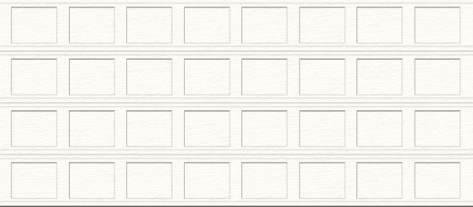

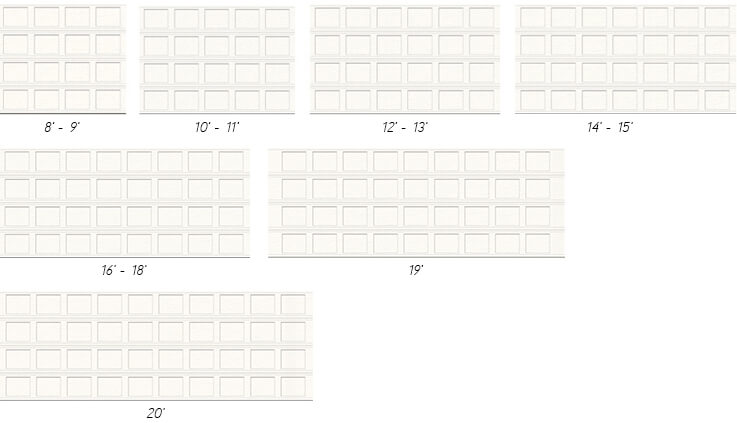

Shaker‑Flat Short |
 |
|
8' to 11' |
 |
|
10' to 11' |
 |
|

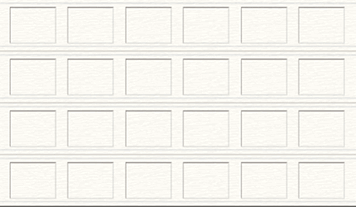

12' to 15' |
 |
|
16' to 18' |
 |
|

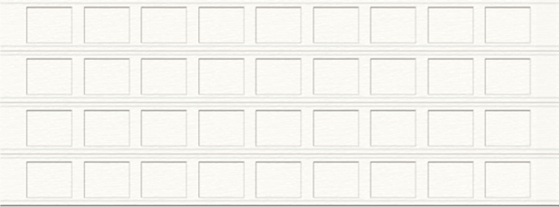

19' |
 |
|

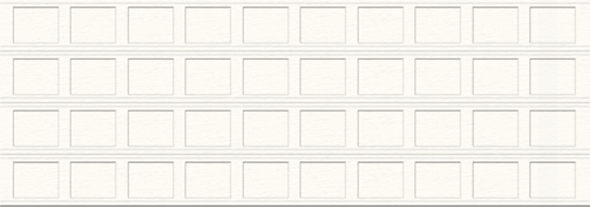

20' |
|

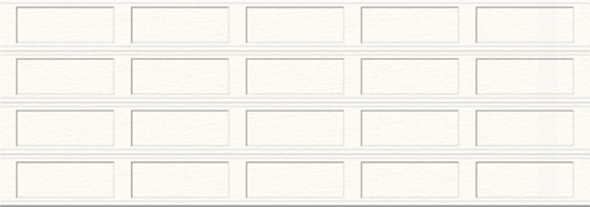

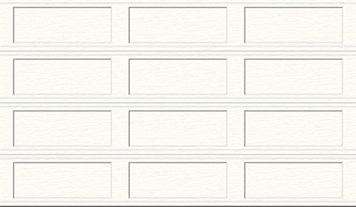

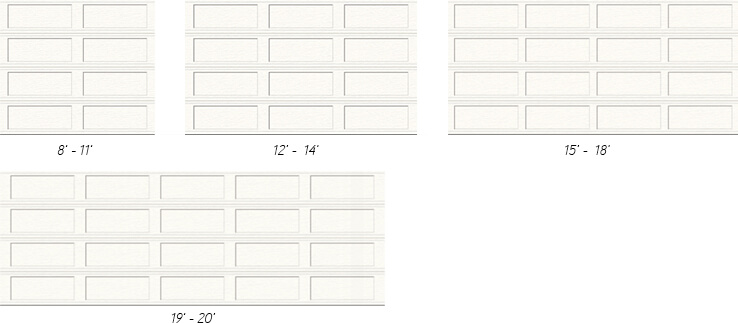

Shaker‑Flat Long |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|

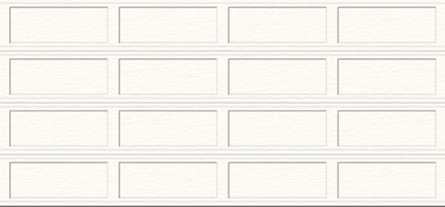

15' to 18' |
 |
|
19' to 20' |
|

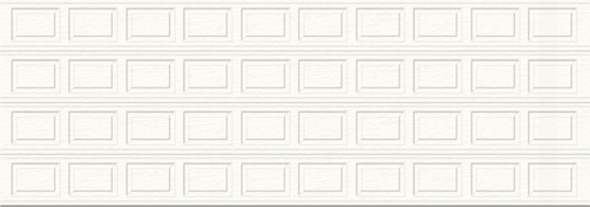

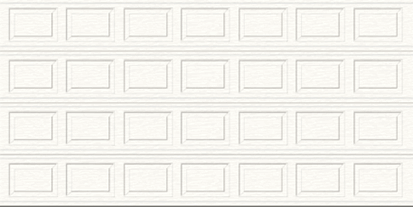

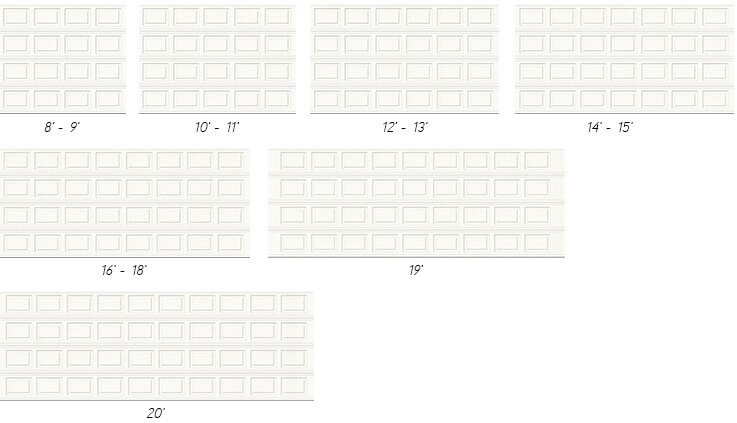

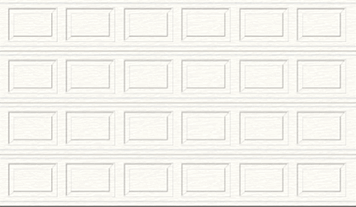

Classic Short |
 |
|
8' to 9' |
 |
|
10' to 11' |
 |
|
12' to 13' |
 |
|
14' to 15' |
 |
|
16' to 18' |
 |
|

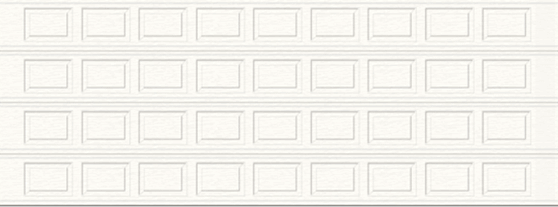

19' |
 |
|
20' |
|

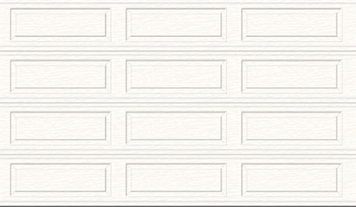

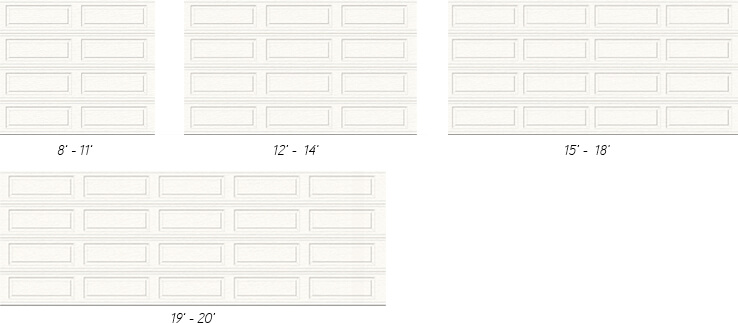

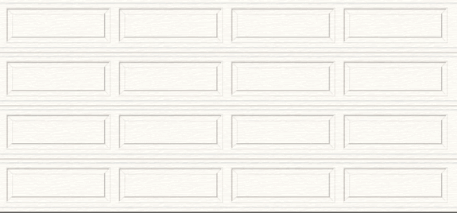

Classic Long |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|
15' to 18' |
 |
|

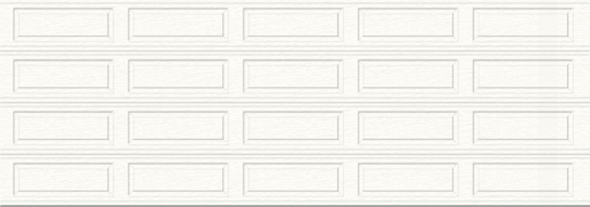

19' to 20' |
Moderno SSG
Available section heights: 21" and 24".
Flush
|

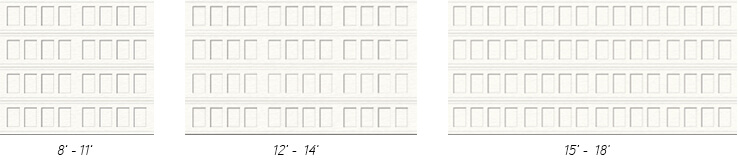

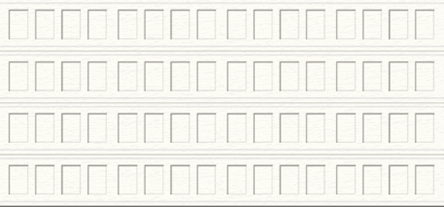

Shaker‑Flat XSmall |
 |
|
8' to 11' |
 |
|

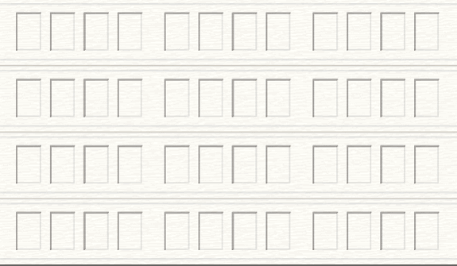

12' to 14' |
 |
|
15' to 18' |
|

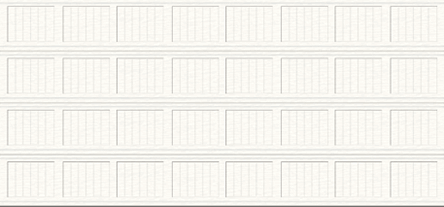

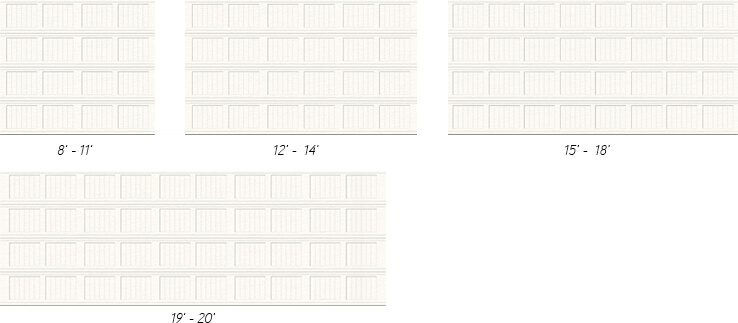

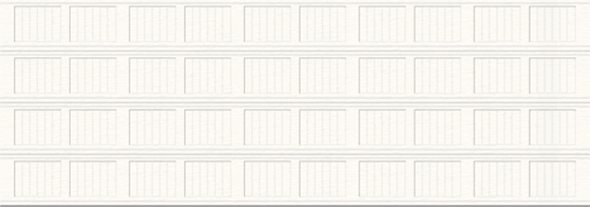

Shaker‑CS Short |
 |
|
8' to 11' |
 |
|

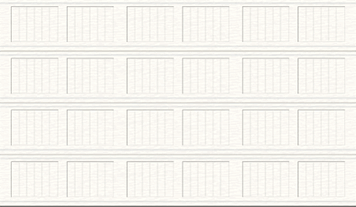

12' to 14' |
 |
|
15' to 18' |
 |
|
19' to 20' |
|

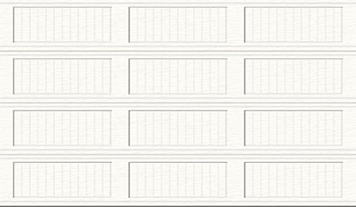

Shaker‑CS Long |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|

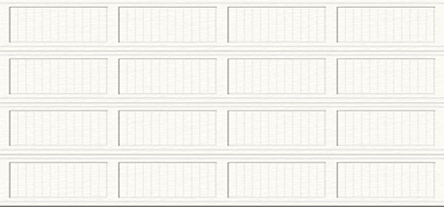

15' to 18' |
 |
|

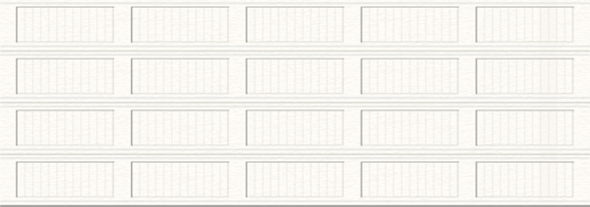

19' to 20' |
Construction
3 layers | Polystyrene
(Steel + Polystyrene + Steel)
|
1
|
26‑gauge pre‑painted galvanized steel for high durability |
|
2
|
2" tongue-and-groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety |
|
3
|
Polystyrene insulation pressure bonded between two layers of steel for energy efficiency |
|
4
|
20‑gauge white baked‑on paint finish end stiles for a nice clean look |
|
5
|
Full‑length reinforcing plates to solidly attach hinges and struts |
†The Vantage garage door model belongs to the Mid‑America series of products.
